Hand Pallet Truck Wheels SW/LW Series

Hand Pallet Truck Wheels SW/LW Series

JUAL  Hand Pallet Truck Wheels SW/LW Series

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com

GetFile1GetFile2  GetFile3 GetFile4 GetFile5 GetFile6

SPESIFIKASI :

STEERING WHEELS

No. Model Outer Diameter (mm) Width (mm) Inner Diameter (mm) Recommended Bearing
Nylon Code Shaft Diameter (mm)
1 SWN20050 200 50 47 6204 20
2 SWN18050 180 50 47 6204 20
3 SWN16050 160 50 47 6204 20
PU/Cast Iron Core
4 SWPC20050 200 50 47 6204 20
5 SWPC18050 180 50 47 6204 20
6 SWPC16050 160 50 47 6204 20
PU/Nylon Core
7 SWPN20050 200 50 47 6204 20
8 SWPN18050 180 50 47 6204 20



LOAD WHEELS

No. Model Outer Diameter (mm) Width (mm) Inner Diameter (mm) Recommended Bearing
Nylon Code Shaft Diameter (mm)
1 LWN8093 80 93 47 6204 20
2 LWN8070 80 70 47 6204 20
3 LWN7470 74 70 47 6204 20
PU/Cast Iron Core
4 LWPC8093 80 93 47 6204 20
5 LWPC8070 80 70 47 6204 20
LWPC7470 74 70 47 6204 20
6 LWPC5093 50 93 35 6003 17
7 LWPC5070 50 70 35 6003 17
PU/Nylon Core
8 LWPN8093 80 93 47 6204 20
9 LWPN8070 80 70 47 6204 20

BEARINGS

Model 6003ZZ 6204ZZ 6205ZZ
Inner Diameter  (a) mm 17 20 25
Outer Diameter (b) mm 35 47 52
Thickness (c) mm 10 14 15

GetFile7

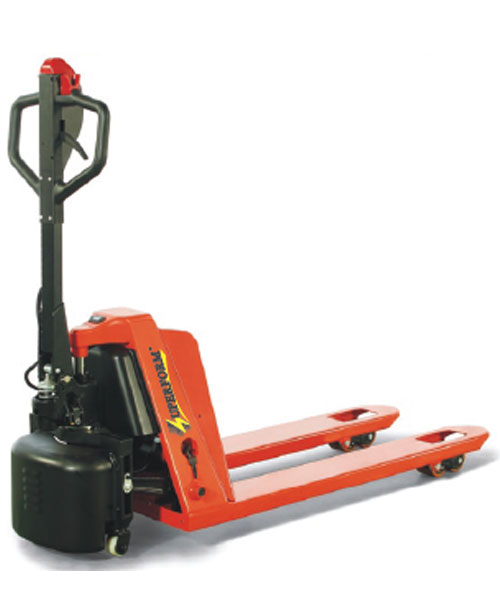

SEMI-POWERED SPT SERIES HAND PALLET TRUCKS

SEMI-POWERED SPT SERIES HAND PALLET TRUCKS

JUAL  SEMI-POWERED SPT SERIES HAND PALLET TRUCKS

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com

GetFile

SPESIFIKASI :

ITEM/TYPE SPT 15
Specification
Capacity kg 1500
Lifting height (H1) mm 200
Min height (S) mm 85
Load Center (Q) mm 600
Fork Length mm 1150
Fork Width mm 540/685
Max Width mm 540/685
Wheel Configuration No 1X + 2/4
Swing Angle α ° 80
Steering Angle β ° 180
Front Load Wheels mm Φ80 x 70
Rear load Wheels mm Φ50 x 30
Drive Wheel mm Φ220 x 70
Net Weight (with battery) kg 160
Dimensions (mm) X1 212
S 48
X2 200
Y 1275
L 1687
N 160
Turning Radius (mm) Wa 1430
Performance
Travelling Speed km/h 3.3 / 3.0
Sound Level dB < 70
Components
Drive Motor w Metalrota (Italy) 400
Battery V/Ah 2 x 12/40
Battery Weight kg 20
Gradient % 5/8
Brake Electric
Speed Controlling MOSFET

DETAIL :

  • Electrically driven, manual hydraulically lifted hand pallet truck boosts productivity yet maximises your handling budget.
  • Powerful drive motor moves heavy loads over long distances quickly and without strain on the operator.
  • Liftling & lowering is pperformed quickly and reliably using the German hydraulic pump.

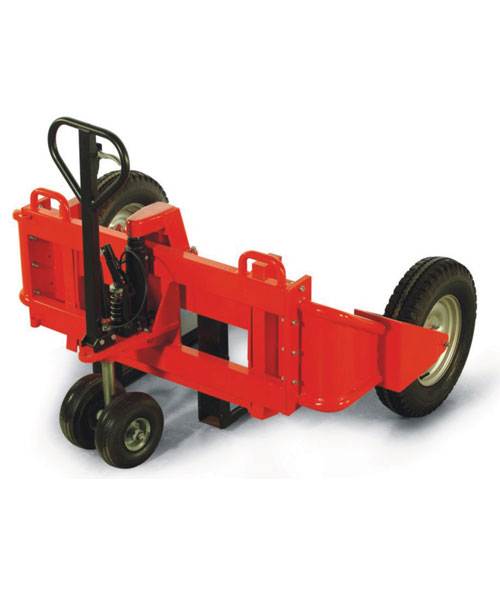

ROUGH TERRAIN RTHPT SERIES HAND PALLET TRUCKS

ROUGH TERRAIN RTHPT SERIES HAND PALLET TRUCKS

JUAL  ROUGH TERRAIN RTHPT SERIES HAND PALLET TRUCKS

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com

GetFile

SPESIFIKASI :

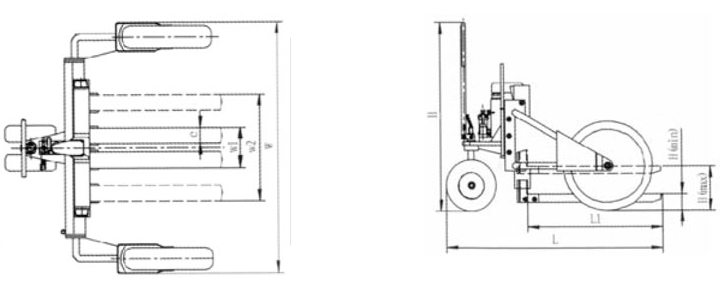

Model RTHPT1000
Capacity kg 1200
Overall Width mm 1605
Width Inside the Front Wheels mm 1277
Fork Length mm 860
Fork Width mm 100
Overall Fork Height mm Adjustable 228 – 735
Min. Fork Height mm 63
Max. fork height mm 233
Load Wheel mm Φ 550 x 132
Steering Wheel mm Φ 265 x 80
Overall Length mm 1375
Overall Height mm 1200

GetFile2

DETAIL :

  • Unique design with large pneumatic wheels and straddle legs offers a handling solution to the many problem of moving goods nsover difficult terrain.
  • Suitable for applications at building sites, gardens, nurseries and all places where the ground is uneven.
  • Adjustable fork width from 228 – 735mm.
  • Ideal for open and closed pallets.

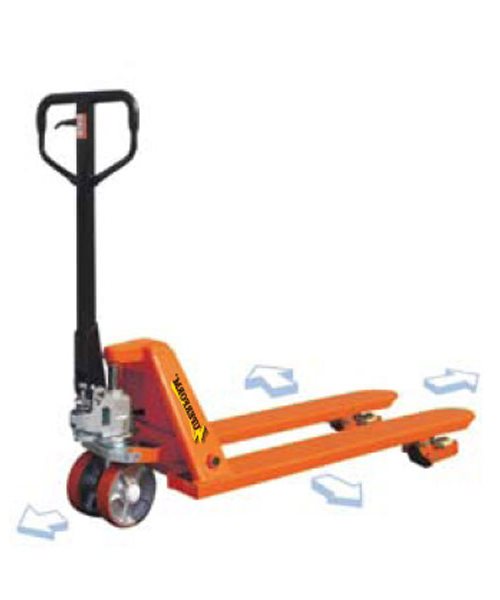

SIDE ROLLER ACSR SERIES HAND PALLET TRUCKS

SIDE ROLLER ACSR SERIES HAND PALLET TRUCKS

JUAL  SIDE ROLLER ACSR SERIES HAND PALLET TRUCKS

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com



GetFile

SPESIFIKASI :

Model ACSR1500N ACSR1500W
Capacity kg 1500
Overall Forks Width mm 540 685
Fork Length mm 1150 1220
Fork Size mm 160 x 50
Min. Fork Height mm 85
Max. Fork Height mm 85~170~210
Steering Wheel mm Ø 200 x 50W Ø 200 x 50w
Forwards/Backwards Load Wheel mm Ø 78 x 70W Ø 78 x 70w
Sidewards Load Wheel mm Ø 65 x 60W Ø 65 x 60w
Truck Heights for Forwards/Backwards Movement mm 85mm ~ 170mm, 2500kg
Truck Heights for Sideways Movement mm 170mm ~ 210mm, 1500kg



ACSR-1

DETAIL :

  • An additional set of wheels allows the pallet truck to move side ways in addition to the conventional front and backwards.
  • Unique 4-directional movement capability via an extra set of sidewards load wheels.
  • Perfect tool to carry long/wide loads along narrow aisles or anywhere where maneuverability is required.



WEIGH SCALE ACWS SERIES HAND PALLET TRUCKS

WEIGH SCALE ACWS SERIES HAND PALLET TRUCKS

JUAL  WEIGH SCALE ACWS SERIES HAND PALLET TRUCKS

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com

GetFileGetFile2



SPESIFIKASI :

Model ACWS2000N/W ACWS2000N/W-P
Specification
Capacity kg 2000
Overall Forks Width (B) mm 572 692
Fork Length (A) mm 1150 1220
Overall Length (A1) mm 1580 1650
Min. Fork Height (H1) mm 85 76
Max. Fork Height (H2) mm 200 190
Steering Wheel (D) mm Ø 180 (x 50W)
Load Wheel mm Ø 74 x 70W (Tandem) Ø 64 x 70W (Tandem)
Weigh Scale
Origin RAVAS (Holland)
Gradations kg 1
Tolerance % 0.1 of Capacity
Batteries DC 4 x 1.5V AA, 2.7Ah
Battery Life hrs 70

ACWS-1ACWS-2



DETAIL :

  • Superior features of this 5th generation weigh scale hand pallet truck.
  • High accuracy with a maximum error rate of 0.1% even with non optimal floor conditions and when the load is placed off centre.
  • Multiple Weigh Total function which adds up several separately weighed loads, totals them and display the results together with the number of loads weighed.
  • Low power usage enables 4200 weighing actions to be made in automatic sleep mode.
  • High contrast display can be read at any angle and even at ambient light conditions.
  • Big function keys that “click” when pressed makes work easier for the user especially while wearing gloves.
  • All electronic components are designed for mobile use and thus have no connectors or components that can shake loose from shocks or vibration leading to a long product life and low lost of ownership.
  • Water and dust proof to IP65 which means that this product can be used in open weather conditions and can be cleaned with water (excluding high pressure jets).
  • Conforms to CE (Europe) and FCC (USA) standards.
  • Optional printer is energy efficient and resistant to vibrations and shocks.

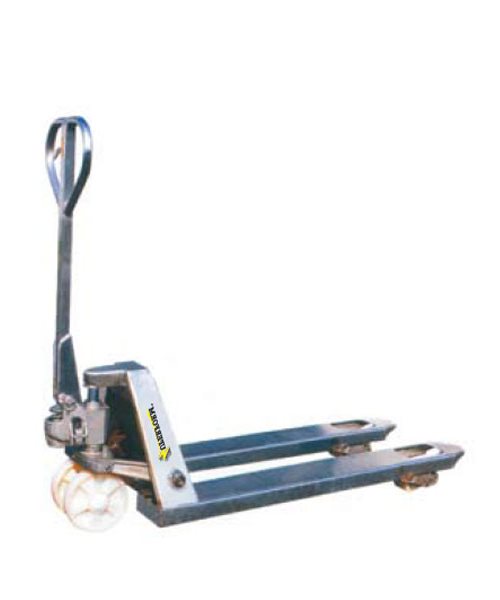

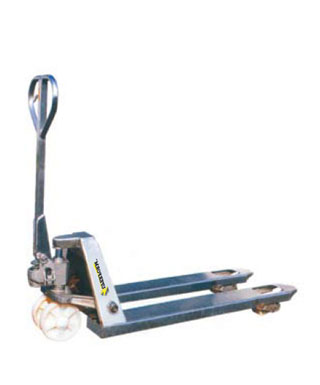

HOT DIPPED GALVANISED AC-HDG SERIES HAND PALLET TRUCKS

HOT DIPPED GALVANISED AC-HDG SERIES HAND PALLET TRUCKS

JUAL  HOT DIPPED GALVANISED AC-HDG SERIES HAND PALLET TRUCKS

HAND PALLET TRUCKS | RAJA RAK INDONESIA

HAND PALLET TRUCKS | BESI | TANPA BAUT | KNOCKDOWN | REKONDISI | HEAVY DUTY | LIGHT MEDIUM | MURAH | BEKAS | JAKARTA | SURABAYA | BANDUNG | http://www.rajarakminimarket.com



GetFile2

GetFileACHDG

SPESIFIKASI :

Model AC2000HDGN AC2000HDGW
Capacity kg 2000
Overall Forks Width mm 540 685
Fork Length mm 1150 1220
Min. Fork Height mm 85
Max. Fork Height mm 200
Steering Wheel mm Ø 180 x 50W
Load Wheel mm Ø 82 x 93W

DETAIL :

  • Hot dipped galvanized hand pallet truck with fully rubber sealed ball bearings for the ultimate in corrosion resistance.
  • Galvanizing process gives durable corrosion protection that stands up to the constant abrasion of pallet entry and exit.
  • Suitable for cold rooms, industrial kitchens, hypermarkets and all areas where corrosive acids and saline solutions are used.
  • Nylon wheels recommended only.
